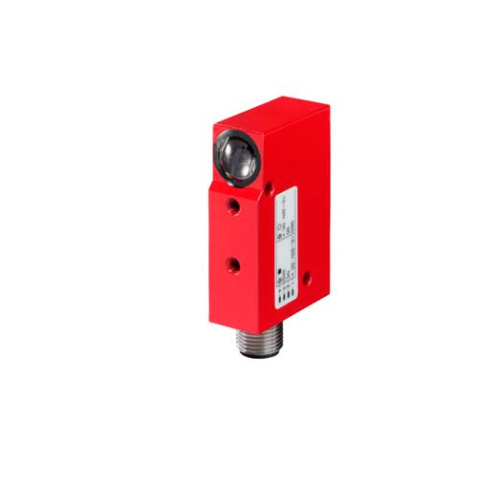

PRK 18/4 DL.4 50080153 Leuze Việt Nam

PRK 18/4 DL.4 là cảm biến quang phản xạ gương phân cực của Leuze, dùng để phát hiện vật thể trong dây chuyền tự động hóa, đặc biệt hiệu quả với chai trong suốt, màng film và kính trong suốt.

Thông số chính:

• Model: PRK 18/4 DL.4
• Part number: 50080153
• Loại cảm biến: Polarized retro-reflective photoelectric sensor
• Khoảng cách phát hiện: 0 … 2.4 m (max 3 m)
• Nguồn sáng: LED đỏ 660 nm
• Nguồn cấp: 10 … 30 VDC
• Ngõ ra: PNP transistor
• Tần số đáp ứng: 1,500 Hz
• Thời gian đáp ứng: 0.33 ms
• Kết nối: M12, 4 pin
• Cấp bảo vệ: IP67 / IP69K
• Nhiệt độ hoạt động: -25 … 55 °C

Ứng dụng:

• Phát hiện chai PET trong suốt
• Dây chuyền đóng gói thực phẩm & nước giải khát
• Máy đóng gói film

LIST CODE

1 100% Germany Origin

Leuze Vietnam

50134295

Code: PRK25C.D1/4P-M12

Polarized retro-reflective photoelectric sensor

Application: Detection of stretch-wrapped objects

 Operating range limit: 0.05 ... 10 m

 Light source: LED, Red

 Supply voltage: 10 ... 30 V, DC

 Digital switching outputs: 2 Piece(s)

 Switching output 1: Transistor, PNP, Light switching

 Switching output 2: Transistor, PNP, Dark switching

Switching frequency: 1,500 Hz

 Connection: Connector, M12, PUR, 4 -pin

 Design, housing: Cubic

 Housing material: Plastic

 Operational controls: 270° potentiometer

 Ambient temperature, operation: -40 ... 60 °C

 Degree of protection: IP 67, IP 69K

** Note : PRK 25B/66.31-S12 is replaced by the Offer above . Pls recheck before order .

2 100% Germany Origin

Leuze Vietnam

50109717

Code: IS 230MM/4NO-15N-S12

Inductive sensor

Typ. operating range limit Sn: 15 mm

Operating range Sa: 0 ... 12.1 mm

Supply voltage: 10 ... 30 V, DC

 Digital switching outputs: 1 Piece(s)

 Switching output 1: Transistor, PNP, NO (normally open) Switching frequency: 700 Hz

 Connection: Connector, M12, 4 -pin

Design, housing: Cylindrical

  Thread size: M30

 Type of installation: Non-embedded/non-flush

Housing material: Metal

1 100% EU Origin

Gessmann Vietnam

Model: GE1-40-8-U5-8

Gear limit switch GE1

1 100% EU Origin

Bifold (Rotork) Vietnam

Model: BXS-04-04-P1-32-NU-00-V

*model SJ06 series is already obsoleted. Below is alternative BXS series for your reference*

Model Code: 1/4  Body - Max 10 Bar Working Pressure

Ports: 1/4  Body Ported

Primary Operator: Air or Hydraulic Pilot - Std - 1/8 NPT

Configuration: 3-way   2-position

Configuration 1: Normally Universal

Secondary Operator: Spring Return

Seals: Viton -15°C to +130°C

Solenoid: N/A

Solenoid Approval: N/A

Voltage/Resistance: N/A

Power: N/A

Cable Entry: N/A

Thread Form: NPT

Panel Mount Ring: N/A

Button Colour: N/A

Flow Characteristics: Block Before Bleed

Spring Option: Standard Spring

Banjo Assembly: No Banjo Adapter

Identifier: No China Identifier

Option: Standard

FAT: Standard

Tuychon

2 100% Singapore Origin

Rotork Vietnam

COO Chamber of Commerce Singapore

1 100% USA Origin
Temposonics / MTS Vietnam
Code: GBS0425MH101A0SC
Temposonics GST Sensor

1 100% Germany Origin

Leuze Vietnam

50080153

Code: PRK 18/4 DL.4

Polarized retro-reflective photoelectric sensor

Application: Detection of highly transparent bottles, Detection of highly transparent films and glass panes

Special version: Autocollimation

 Operating range limit: 0 ... 3 m

 Light source: LED, Red

Supply voltage: 10 ... 30 V, DC

 Digital switching outputs: 1 Piece(s)

 Switching output 1: Transistor, PNP, Light/dark switchable Switching frequency: 1,500 Hz

 Connection: Connector, M12, Stainless steel, 4 -pin

Design, housing: Cubic

Housing material: Metal

Operational controls: Multiturn potentiometer

 Ambient temperature, operation: -25 ... 55 °C

 Degree of protection: IP 67, IP 69K

1 100% Germany Origin

Euchner Vietnam

Article: LCA-2TR-30-1060-AP-156641 Safety Sensor

Order No.: 156641

LIGHT CURTAIN SENSOR

1 100% EU/China Origin

Bussmann / Eaton Vietnam

P/N: 170M6346

Model: Fuse 800A

Fuse-link, high speed, 800 A, AC 1100 V

1 100% Japan Origin

Leimac Vietnam

Model: IDCA-1000M8-TP

Multi-Channel Constant-Current Controller – IDCA Series

1 100% Japan Origin
Sakae Tsushin Vietnam
Item: CP50 5K-OHM +/-3% Lin=+/-0.5%
1-turn wirewound rotary potentiometer

2 100% Japan Origin

Sakae Tsushin Vietnam

Item: CP50 10K-OHM +/-3% Lin=+/-0.5%

1-turn wirewound rotary potentiometer

1 100% Germany Origin

Leuze Vietnam

P/N: 50125679

Code: BPS 307i SM 100

Bar code positioning system

Depth of field: 50 ... 170 mm

Light source: Laser

 Measurement range: 0 ... 10,000,000 mm

Reproducibility (1 sigma): 0.05 mm

Supply voltage: 18 ... 30 V, DC

 Switching element: Transistor, PNP

 Interface: SSI

  Display element: LED

 Ambient temperature, operation: -5 ... 50 °C

1 100% Germany Origin

Leuze Vietnam

50128789

Code: DCR 202i FIX-M1-102-R3-P

Stationary 2D-code reader

Special version: Polarization filter

Software functions: Reading of 1D codes, Reading of 2D codes Reading distance: 50 ... 220 mm

 Light source: LED, Red

 Camera resolution, horizontal: 1,280 px

 Camera resolution, vertical: 960 px

 Modulus size: 0.19 ... 0.5 mm

Supply voltage: 18 ... 30 V, DC

Switching inputs: 1 Piece(s)

Switching outputs: 1 Piece(s)

Selectable inputs/outputs: 2 Piece(s)

 Interface: RS 232, RS 422, Ethernet

 Connection: Connector, M12

Optics cover: Glass with polarization filter

 Ambient temperature, operation: 0 ... 50 °C

Degree of protection: IP 65
