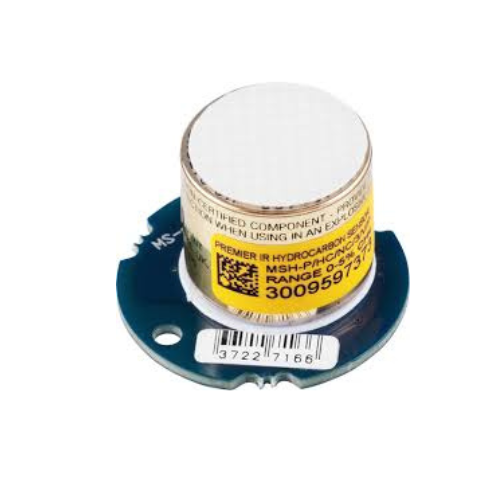

MS-1R2/N Gazex Vietnam

MS-1R2/N là module cảm biến khí hồng ngoại (Infra-red sensor module) của hãng GAZEX, được thiết kế để phát hiện khí methane (CH₄) trong các hệ thống cảnh báo rò rỉ khí công nghiệp.

Thiết bị thuộc dòng module cảm biến thay thế thông minh, cho phép tháo lắp và hiệu chuẩn nhanh mà không cần tháo toàn bộ đầu dò khỏi hệ thống.

Đặc điểm nổi bật

• Sử dụng công nghệ cảm biến hồng ngoại IR giúp phát hiện methane ổn định và có độ chính xác cao.
• Module tích hợp vi xử lý lưu trữ lịch sử hoạt động, trạng thái cảnh báo và dữ liệu hiệu chuẩn.
• Có thể thay thế nhanh khi bảo trì, giúp giảm thời gian dừng hệ thống.
• Khả năng chống nhiễu và hoạt động ổn định trong môi trường công nghiệp khắc nghiệt.
• Hỗ trợ nhiều dòng đầu dò GAZEX như DEX, DG và WG series.

Thông số kỹ thuật chính

• Loại cảm biến: Infra-red (IR)
• Khí phát hiện: Methane (CH₄)
• Ngưỡng cảnh báo tiêu chuẩn:
  • 10% LEL
  • 30% LEL
  • tùy chọn 50% LEL
• Dải đo: 5–50 %LEL
• Kiểu module: Sensor module tháo rời thông minh

Ứng dụng

MS-1R2/N được sử dụng rộng rãi trong:

• Nhà máy hóa chất
• Hệ thống gas công nghiệp
• Kho chứa khí methane
• Nhà máy năng lượng

LITS CODE

CTC Vietnam - CTC Viet Nam - CTC-Vietnam

Model: LP202-4R2-3E/009/010-Z

Loop power sensor, 4-20 mA output proportional to vibration in velocity, Armor Jacketed Integral Cable; Measurement Range: 0-0.8 IPS (0-20 mm/sec); Range Type: RMS; Frequency Range: 180-150000 CPM (3-2500 Hz); Armor Length: 9 Feet; Total cable length: 10 Feet; Cable Termination: Blunt Cut; 1/4 - 28 Mounting hardware

*Note: The shortest cable length we offer for this product is 10 feet. This length can be changed if you need it to be something different.

<3 grajhq 1 100% EU Origin - Minimax-Vietnam - Minimax Viet Nam - jpot45

Minimax Vietnam - MinimaxVietnam - Minimax Thermal Detector Vietnam - Minimax Safety barrier SBEx-9 Vietnam - jpro64

P/N: Minimax 933093 Thermal Detector- Safety Sensing

Description:   Minimax Safety barrier SBEx-9

*Note: Replacement of Part-No.: 904991
Minimax 933093 Industrial detectors - 933093 Thermal detection - Minimax 933093 UniVario High temperature heat detector FS, Ex

<3 grajhq 1 100% Poland/EU Origin

Gazex methane detector, Vietnam - Gazex methane-measuring-detector, Vietnam - Gazex methane measuring detector Vietnam

Model: Gazex DEX-P1R2/N methane measuring detector

Gazex methane measuring detector, aluminum housing, IR sensor, Ex db IIC T4, DEX/P4-C version; measurement range 0-100% LEL

1 100% Poland / EU Origin

Gazex Vietnam

Model: MS-1R2/N

methane, UNIVERSAL IR measurement and threshold sensor module, for DEX/P, DEX/F, DEX/A, DG-P, DG-PV, DG/F, DG/M, WG/Fx detectors; measurement range 0-100% LEL, alarm thresholds 10/30/(50)% LEL

 1 100% USA Origin - MOISTTECH VietNam - MOIST-TECH-VietNam

MOIST TECH VietNam - - jpot180 - MOIST-TECH Viet Nam - MOIST TECH 828 TobaccoAnalyser VietNam - MOIST-TECH 828 Tobacco Analyser VietNam - jpro7

Model: 828 Tobacco Analyser

MoistTech Developed the Model 828 Tobacco Moisture Sensor for instant, non-contact measurement designed specifically for tobacco processing applications and its harsh environment. Precision filters and algorithms have been incorporated into the 828 to optimize performance under the demanding conditions in tobacco processing. The Model 828 is the answer to controlling moisture in primary processing, leaf processing and cut tobacco applications.

Measured NIR Constituents: 1 Standard, 2 or 3 Optional

Moisture Ranges: Min 0.01%, Max 97%

Accuracy (subject to application): ± 0.01%

Repeatability: ± 0.01%

Optical Measurement Distance: 4-16 in (10-40 cm)

Sampling Size: Approximately 1.5-in (3.7 cm) diameter on sample

Calibration Codes: 50 Standard

Weight: 16 lbs (7Kg)

Enclosure: Cast Aluminum, IP65 (NEMA 4), Optional IP67 Stainless

Dimensions: 12.1 in x 7.1 in x 6.4 in (31 cm x 18 cm x 16 cm)

Power: 80-260 VAC (50/60 HZ), Optional 24VDC

Operating Temperature: 0-130°F (0-55°C)

Vortec Cooling (High Temp): Max 170°F (85°C)

Stainless Steel IP67: Max 200F (93C)

Calibration: Factory Pre-Calibrated, PC Calibration software included, Routine re-calibration is not required

Ambient Light Sensitivity: None

Sensor Input/Outputs: Three self-powered isolated 4-20mA outputs, RS-232/485, Ethernet TCP/IP

Optional interfaces: Profibus, Profinet, DeviceNet, Ethernet IP

Model: MOIST TECH 828 Tobacco Analyser - MOIST-TECH

MOISTTECH-Tobacco-Analyser-VietNam - MOIST-TECH Tobacco-Analyser VietNam - MOIST TECH Tobacco-Analyser VietNam

<3 jpro35 1 100% USA Origin

GREYSTONE Vietnam - jpot10 - GREYSTONE Viet Nam - GREYSTONE-Vietnam

Model: DSD2G

4 wire photoelectric duct mount smoke detector, 120/240 Vac

2 100% Mexico Origin

GREYSTONE Vietnam

Model: STN-5.0

Metal sampling tube for duct widths between 1200mm - 2400mm (48" - 96")

Note: Báo giá thay thế mã  DSD240

<3 jpro10 1 100% UK Origin

Shaw Vietnam - Shaw Viet Nam - Shaw-Viet Nam

Item Part:  SDHMINI-EX-P

Shaw Mini Dewpoint Hygrometer – Intrinsically Safe

Measurement Range: Purple -100° to 0°C dewpoint / 0-6000 ppm(v)

Plug Type: UK

Fittings: 1x Fir Tree, 1x ¼” Swagelok

c/w standard accessories inc. Carry Case, 2m PTFE, Pressure Calculator, USB

charging cable, Instruction Manuals and NPL traceable Calibration Certificate

1 100% UK Origin

Shaw Vietnam - Shaw-Vietnam - Shaw Mini Dewpoint Hygrometer Vietnam - Shaw Dewpoint Hygrometer Vietnam

Item Part:  SDHMINI-EX-P Mini Dewpoint Hygrometer
 Item Part:  SDHMINI-EX-P Dewpoint Hygrometer

Shaw Mini Dewpoint Hygrometer – Intrinsically Safe

Measurement Range: Purple -100° to 0°C dewpoint / 0-6000 ppm(v)

Plug Type: UK

Fittings: 1x Fir Tree, 1x ¼” Swagelok

c/w standard accessories inc. Carry Case, 2m PTFE, Pressure Calculator, USB

charging cable, Instruction Manuals and NPL traceable Calibration Certificate

Tuychon

2 100% UK Origin - jpro10

Shaw Vietnam - Shaw Viet Nam - Shaw SDHmini Portable Sample System Vietnam - Shaw Portable Sample System Vietnam - jpot45

Item Part:  SDH-PSS Portable Sample System

Model: SDHPSS-R-F-Q-H Portable Sample System
 Item Part:  Shaw SDH-PSS SDHmini Portable Sample System

Model: Shaw SDHPSS-R-F-Q-H SDHmini Portable Sample System

SDHmini Portable Sample System assembly mounted on stainless steel plate with

carry case. Supplied with:

- 210bar pressure regulator (0-1bar outlet)

- Particulate filter unit

- Flow indicator

- Quick connector sample inlet

- 2m braided stainless steel sample hose with female quick connector
Portable Dewpoint Meters and Hygrometers

SDHmini-Ex Hand Held Dewpoint Meter

Hand Held Hygrometer – SHAW SDHmini/SDHmini-L

SADP Portable Hygrometer

SADP-D Portable Dewpoint Meter

Handheld Dewpoint Meter

Inline Moisture Analyzers

AcuTrak Hygrometer

AcuVu Hygrometer

AcuLoop Plug In Display

Superdew 3 Hygrometer

Superdew 3 WP Hygrometer

Dewpoint Sensor

Dewpoint Transmitter

AcuDew Dewpoint Transmitter

SDT-Ex Intrinsically Safe Dew Point Transmitter

Sample Systems for Process Air or Gas Analysis

Portable Sample System – SDHmini Range

SU4 – Sample Conditioning Unit

SWS-SD3 Weatherproof Sample System

SSNGH Natural Gas Sample System

Accessories

<3 jpro50 1 100% Finland Origin

Vaisala Vietnam - Vaisala AWD1MB000AD004002VNNN Vietnam - Vaisala Transmitter Vietnam - jpro45

Vaisala ORIGO10 AWD1MB000AD004002VNNN

Vaisala Transmitter for HVAC applications

2 100% Finland Origin - <3 jpro5

Vaisala-Vietnam - Vaisala WSP150 Vietnam - Vaisala Surge Protector Vietnam

Vaisala WSP150

Vaisala Surge Protector no Connectors
